Case studies: Reactors for preparation of medicinal products

Customer

World leading supplier of softgel encapsulation plants.

Project

Tanks for the preparation of medicinal products.

Reactors for preparation of medicinal products

Services skid is installed in a technical area, separately from the reactors that are installed in the clean room.

Installation characteristics

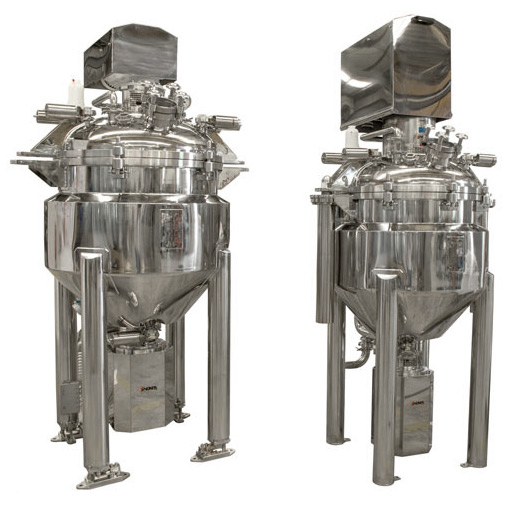

A 300L tank for the preparation of a medicinal product is provided with a tank bottom mixer with a two level recirculation system, counter-rotating anchor and lid lifting system for maintenance.

A 300L tank for the preparation of gel for softgel capsules is provided with a tank bottom Cowles mixer and an agitator with anchor.

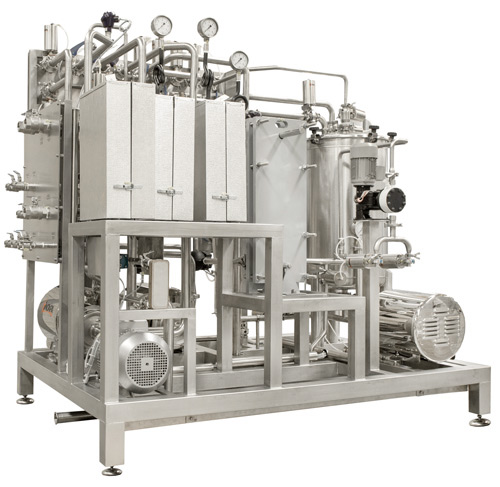

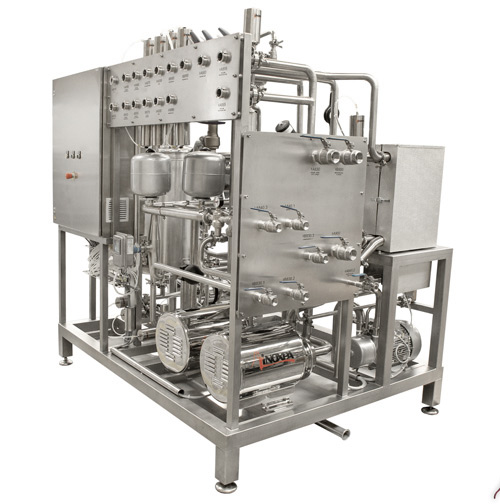

A separate services skid provides such services as vaccum, heating and cooling via water cicuit and CIP to the reactors and to other equipment of the client.

Master control panel is assembled on the services skid, each reactor is also provided with a control panel with touch screen communicated via PROFINET.

Installation qualification (I.Q.) and operational qualification (O.Q.).
